indigo.convert() - Convert Structure Formats
How to convert file formats of a given structure with the indigo.convert() method?
✍: FYIcenter.com
If you want to convert a chemical structure from one file format to another, you can use the indigo.convert() method on the Ketcher Indigo interface.
The indigo.convert(input, opts) method takes two arguments:
Here is an HTML document that shows you how to convert the chemical structure from SMILES format to other formats.
<html> <!-- indigo-convert-structure-format.html Copyright (c) FYIcenter.com. --> <head> <title>Convert Structure File Formats</title> </head> <body> <p>Create a chemical structure, then click convert button below the editor:</p> <iframe id=frmKetcher src="/ketcher/index.html" style="width: 680px; height: 400px;"></iframe> <p><button onclick="convert();">Convert Structure Format</button></p> <pre id=output style="background-color: #ddd;"></pre> <script> var ketcher = null; function convert() { frm = document.getElementById("frmKetcher"); ketcher = frm.contentWindow.ketcher; indigo = ketcher.indigo; promiseSmiles = ketcher.getSmiles(); promiseSmiles.then(consumeSmiles, consumeError); } function consumeSmiles(result) { document.getElementById("output").innerHTML = ""; document.getElementById("output").innerHTML += "SMILES:\n"; document.getElementById("output").innerHTML += result+"\n\n"; indigo.convert(result, {outputFormat: "chemical/x-inchi"}) .then(function(value) { document.getElementById("output").innerHTML += "InChI:\n"; document.getElementById("output").innerHTML += value.struct+"\n\n"; return indigo.convert(result, {outputFormat: "chemical/x-indigo-ket"}); }, consumeError) .then(function(value) { document.getElementById("output").innerHTML += "Ketcher:\n"; document.getElementById("output").innerHTML += value.struct+"\n\n"; return indigo.convert(result, {outputFormat: "chemical/x-mdl-molfile"}); }, consumeError) .then(function(value) { document.getElementById("output").innerHTML += "MDL Molfile:\n"; document.getElementById("output").innerHTML += value.struct+"\n\n"; }, consumeError); } function consumeError(error) { document.getElementById("output").innerHTML = ""; document.getElementById("output").innerHTML += "Error:\n"; document.getElementById("output").innerHTML += error+"\n\n"; } </script> </body> </html>
Open the above HTML document on your local Web server. Draw a molecule in the editor.

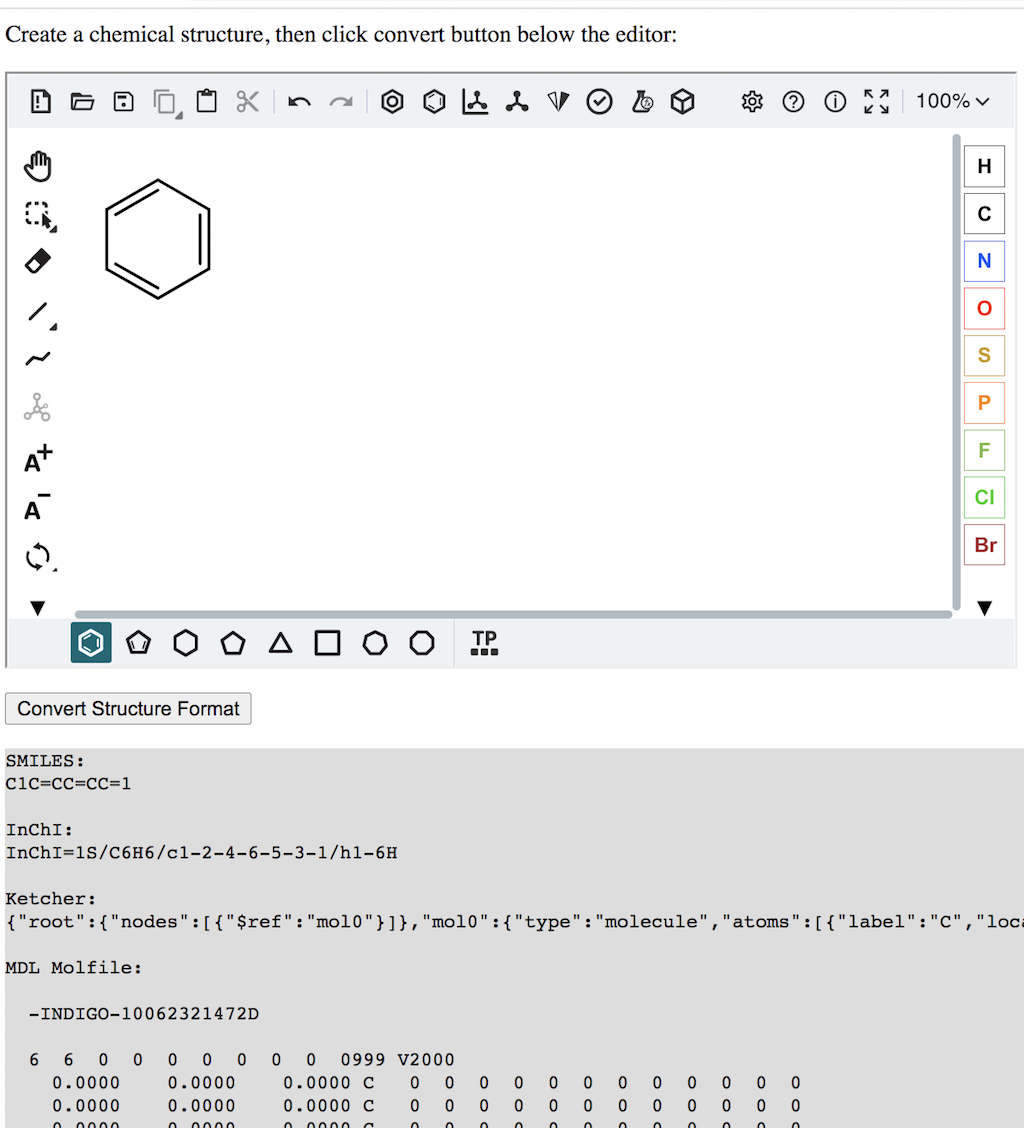

Click "Convert Structure Format" button, you will see that the SMILES representation of the molecule and other structure file formats:
For other chemical structure MIME types, see Chemical file format at wikipedia.org.
⇒ Ketcher File Format for Chemical Structures
2023-10-12, 364🔥, 0💬
