addModel() - Add Model from Data
How to create a model from a molecule data string with 3Dmol.js addModel() methods?
✍: FYIcenter.com
viewer.addModel() method in the $3Dmol.GLViewer class
allows you to create a model from molecule data string:
{$3Dmol.GLViewer} addModel(data, format, options) -> {$3Dmol.GLModel}
Here is an HTML code example, View-PDB-Online.html, that create a model from molecule data obtained an AJAX call.
<html><head> <script src="/3Dmol-min.js"></script> <style> .mol-container {width: 400px; height: 400px; position: relative;} </style> </head> <body> <div id="container-01" class="mol-container"></div> <script> $(function() { let element = $('#container-01'); let config = { backgroundColor: 'grey' }; let viewer = $3Dmol.createViewer( element, config ); let pdbUri = 'https://files.rcsb.org/download/1YCR.pdb'; jQuery.ajax( pdbUri, { success: function(data) { let v = viewer; v.addModel( data, "pdb" ); /* load data */ v.setStyle({}, {cartoon: {color: 'spectrum'}}); /* style all atoms */ v.zoomTo(); /* set camera */ v.render(); /* render scene */ }, error: function(hdr, status, err) { console.error( "Failed to load PDB " + pdbUri + ": " + err ); }, }); }); </script> </body></html>

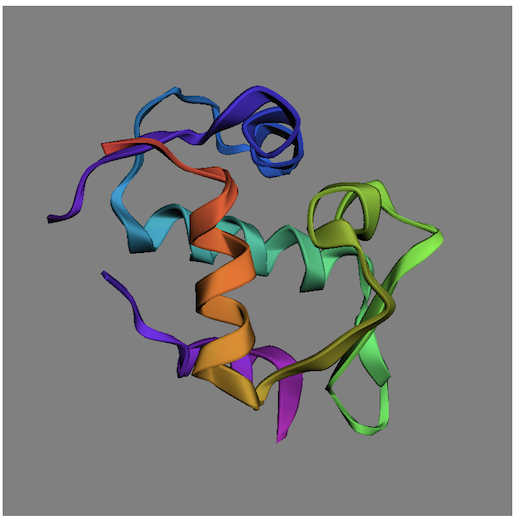

This example HTML code will display a protein structure as shown below:
