addBox() - Create 3D Boxes

Q

How to create 3D Boxes with 3Dmol.js addBox() methods?

✍: FYIcenter.com

A

viewer.addBox() method in the $3Dmol.GLViewer class allows you to create 3D box objects. Here is the signature of the addBox() method:

{$3Dmol.GLViewer} addBox({BoxSpec} spec) -> {$3Dmol.GLShape}

Here is an HTML code example, Draw-Box.html, that uses the addBox() method:

<html><head>
<script src="/3Dmol-min.js"></script>
<style>
.mol-container {width: 400px; height: 400px; position: relative;}
</style>
</head>
<body>
  <div id="container-01" class="mol-container"></div>
<script>
$(function() {
  let element = $('#container-01');
  let config = { backgroundColor: 'grey' };
  let viewer = $3Dmol.createViewer( element, config );
  viewer.addBox({center:{x:0,y:0,z:0},dimensions: {w:3,h:4,d:2},color:'magenta'});
  viewer.zoomTo();
  viewer.rotate(45, {x:1,y:1,z:1});
  viewer.render();
});
</script>
</body></html>

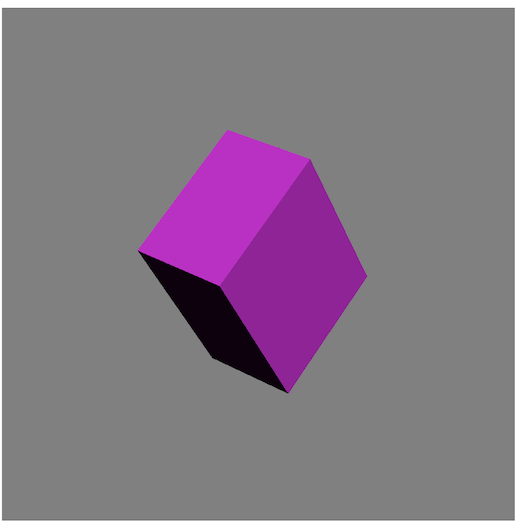

This example HTML code will display a 3D box as shown below:

3Dmol.js Example - Draw Box
3Dmol.js Example - Draw Box
